The TCTemp1000 is a submersible, thermocouple-based temperature data logger. Includes standard calibration certificate. Read More >

Key Features:

  • Submersible up to 150 Feet
  • Accepts a Variety of Thermocouples
  • Individual Cold Junction Compensation


MadgeTech recommends annual calibration.

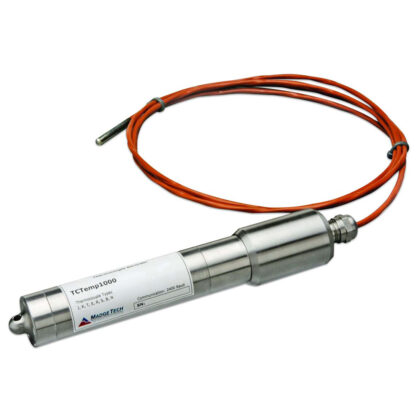

The TCTemp1000 is a submersible, thermocouple-based temperature data logger with stainless steel tipped 6 ft. Type K thermocouple. This device can be submerged up to 150 ft. and is adaptable to a variety of thermocouples.

The TCTemp1000 can measure and record up to 32,766 time and date stamped readings. Featuring individual cold junction compensation for each channel, the TCTemp1000 provides increased accuracy and response time.

The TCTemp1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.



Memory32,766 readings (all channels enabled)
Reading Rate1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate2,400
Cold Junction CompensationAutomatic
Channels1 internal & 1 remote
Battery Life1 year
Material303 stainless steel
Dimensions7.4 in x 1.2 in dia (188 mm x 31 mm)
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface PackageIFC110 or IFC200


Internal Channel Temperature SensorSemiconductor
Internal Channel Temperature Resolution0.1 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy±0.5 °C
Remote Channel Temperature SensorThermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature RangeThermocouple Dependent
Remote Channel Temperature ResolutionThermocouple Dependent
Remote Channel Temperature Calibrated AccuracyThermocouple Dependent


TCTemp1000 Product User Guide
TCTemp1000 Specification Sheet


Part Numbers

TCTemp1000 — 901620-00
