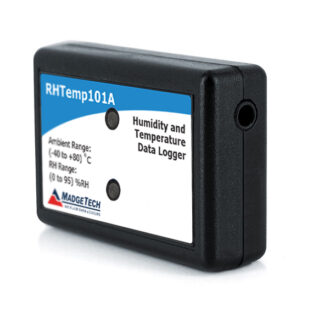

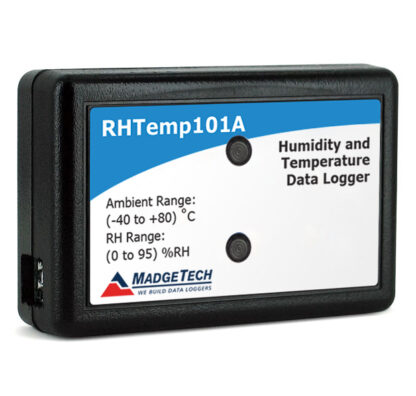

RHTemp101A

The RHTemp101A is a compact, humidity and ambient temperature data logger. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Compact Size
  • 10-Year Battery Life
  • Programmable Alarm Limits
  • Precision RTD Sensing Element
  • Memory Capacity of 1,000,000+ Readings

Availability: 5-7 Business Days

$159.00

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The RHTemp101A is a compact, humidity and ambient temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) and humidity from 0 %RH to 95 %RH.

The RHTemp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 1,047,552 time and date stamped readings, the RHTemp101A is perfect for long-term studies.

The RHTemp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory1,047,552 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Alarm Yes, Humidity
Baud Rate 115,200
LED Indicators Red & Green
Push-Button Start Yes
Battery Life 10 years typical at a 15 minute reading rate
MaterialPolycarbonate
Dimensions1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
ApprovalsCE

Temperature

Temperature Sensor Precision RTD Element
Temperature Range -40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.5 °C (±0.9 °F) from 0 °C to 55 °C (+32 °F to +131 °F)
±1.0 °C (±1.8 °F) from -40 °C to 0 °C (-40 °F to +32 °F) and +55.01 °C to +80 °C (+131.01 °F to +176 °F)

Humidity

Humidity Sensor Internal semiconductor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3.0 %RH
Humidity Accuracy Range25 % RH to 75 % RH, 20 °C to 40 °C, Hysteresis Error 1 % Typ 3 % Max
RH Units %RH, dew pt., water vapor, concentration (mg/hl)

Literature

RHTemp101A Product User Guide
RHTemp101A Specification Sheet

Support Videos

RHTemp101A | Changing the Battery

Accessories

Part Numbers

RHTemp101A — 901499-00

The RHTemp101A replaces the following products:
TransiTempII-RH — 901763-00
TempRetriever-RH — 901690-00
