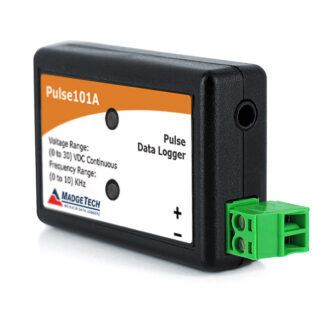

Pulse101A Pulse Data Logger
MadgeTech_Data_Logger_Pulse101A_web_2_New Label
MadgeTech_Data_Logger_Pulse101A_web_1_New Label
Pulse101A Pulse Data Logger
MadgeTech_Data_Logger_Pulse101A_web_2_New Label

The Pulse101A is a compact, pulse data logger. Includes declaration of conformance. Read More >

Key Features:

  • Compact Size
  • 10-Year Battery Life
  • Memory Capacity of 1,000,000+ Readings

Availability: 5-7 Business Days

Find a Distributor

$99.00

MadgeTech recommends annual calibration.

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Pulse101A is a compact, pulse data logger designed to accurately measure and record events occurring within a specified time frame. This device is compatible with many switches, meters, and transducers.

The Pulse101A has a maximum pulse rate of 10 KHz to capture rapid events for a wide range of applications. With a 10-year battery life and the ability to store up to 1,047,552 readings, the Pulse101A can be deployed for long-term assignments.

The Pulse101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory1,047,552 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate115,200
LED IndicatorsRed and Green
Push-Button StartYes
Battery Life10 years typical, dependent upon frequency and duty cycle
MaterialPolycarbonate
Dimensions1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageIFC200
ApprovalsCE

Pulse

Maximum Pulse Rate10 KHz
Pulse Input Range0 to 30 VDC continuous
Pulse Input Low<0.4 V
Pulse Input High>2.8 V
Pulse Input Impedance60000 Ω
Pulse Internal Weak Pull-up<60 μA

Literature

Pulse101A Product User Guide
DOC-1212035-00
Pulse101A Specification Sheet
DOC-1212009-00

State/Event/Pulse Application Note

Support Videos

Pulse101A | Changing the Battery

Pulse101A | The Difference Between Event, State & Pulse

Accessories

Part Numbers

Pulse101A — 901312-00
