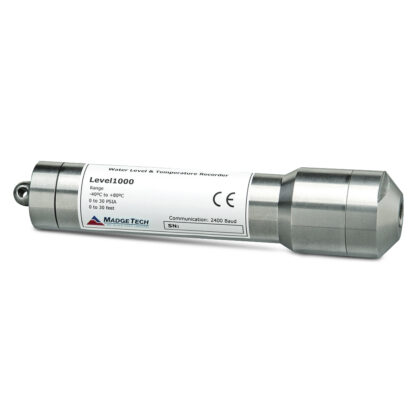

Level1000

Compact DesignSubmersible

The Level1000 is a water level and temperature data logger. Includes standard calibration certificate.

Availability: 5-7 Business Days

$689.00

Extended Warranty

Description

The Level1000 is a water level and temperature data logger submersible up to 30 feet, 30 PSIA. Its compact design allows it to fit almost anywhere, making underwater studies effortless.

The Level1000 can withstand temperatures from -40 °C to 80 °C (-40 °F to +176 °F) and record up to 32,766 readings. The storage medium is non-volatile memory, providing maximum data security even if the battery becomes discharged.

The Level1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,766 readings (all channels enabled)
Reading Rate 1 reading every 2 seconds up to 1 reading every 12 hours
Baud Rate2,400
Battery Life1 year
Material303 Stainless Steel
Dimensions5.7 in x 1.25 in dia.(145 mm x 32 mm)
SubmersibleYes
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH
Required Interface PackageIFC110 or IFC200
ApprovalsCE

Temperature

Temperature SensorInternal Semiconductor
Temperature Range -40 °C to 80 °C (-40 °F to +176 °F)
Temperature Resolution0.1 °C (0.18 °F)
Temperature Calibrated Accuracy±0.5 °C

Water Level

Pressure Sensor
Nominal Range0 to 30 ft
Level Resolution0.05 in
Level Calibrated Accuracy±8.3 inches of water (1.0 in typical at 25 °C (77 °F)
Note: The Level1000 does not compensate for barometric pressure changes, therefore these changes are not included in the accuracy specifications.

Literature

Level1000 Data Sheet

Level1000 Product User Guide

Add-Ons

Part Numbers

Level1000 — 900335-00
