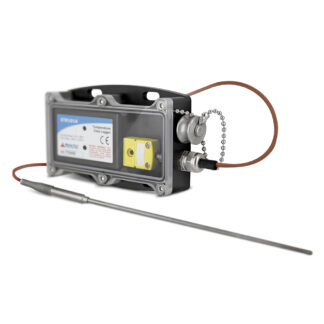

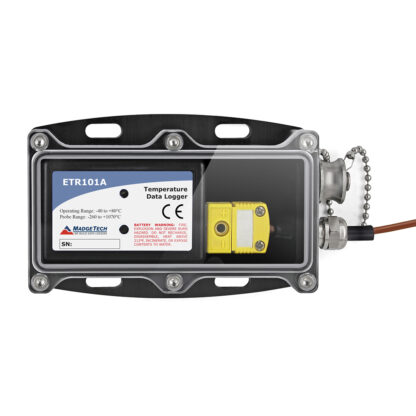

ETR101A

The ETR101A is a data logging system for exhaust temperature profiling. Includes standard calibration certificate. Read More >

Key Features:

  • TC101A Temperature Data Logger
  • Type K Thermocouple
  • IFC200 Data Logger Interface
  • Weatherproof Enclosure

Availability: 5-7 Business Days

$369.00

MadgeTech recommends annual calibration.

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The ETR101A Includes:
(1) TC101A: Temperature Data Logger
(1) Type K Thermocouple
(1) IFC200: Data Logger Interface
(1) Weatherproof Enclosure
(1) Hex Screwdriver
(1) MadgeTech 4 Software

The ETR101A is a complete system designed to profile the exhaust temperature of on-road vehicles and off-road equipment. Once the temperature profile is created, its provided to the diesel particulate filter (DPF) manufacturer to aid in the selection of the correct DPF for the exhaust system.

Setup is simple and easy. Using the MadgeTech 4 Software, program the data logger for a set period of time then mount the logger (in its water resistant enclosure) to the vehicle. Data from the logger is then retrieved by using the IFC200 to download data to the MadgeTech 4 Software. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory1,032,192 readings (all channels enabled)
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate115,200
Cold Junction CompensationAutomatic
Channels1 Internal & 1 Remote
LED IndicatorsRed and Green
Push-Button StartYes
Battery Life10 years typical, dependent upon frequency and duty cycle
MaterialABS plastic
Dimensions1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm)
Operating Environment-20 °C to 80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH
Required Interface PackageIFC200

Temperature

Temperature SensorSemiconductor
Temperature Range-40 °C to +80 °C (-40 °F to +176 °F)
Temperature Resolution0.1 °C (0.18 °F)
Temperature Calibrated Accuracy±0.25 °C (±0.45 °F)
Remote Channel Temperature SensorThermocouple Type K
Remote Channel Temperature Range-260 °C to +899 °C (-436 °F to +1650.2 °F)
Remote Channel Temperature Resolution0.1 °C (0.18 °F)
Remote Channel Temperature Calibrated Accuracy±0.5 °C

Literature

ETR101A Product User Guide
ETR101A Specification Sheet

Accessories

Part Numbers

ETR101A — 900098-00
