CryoTemp

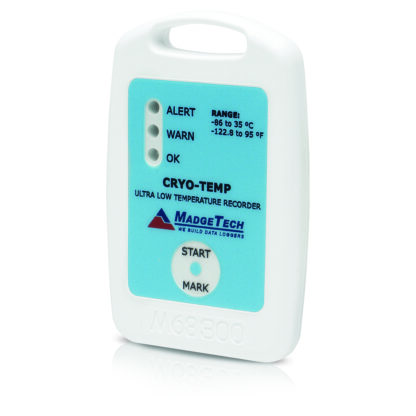

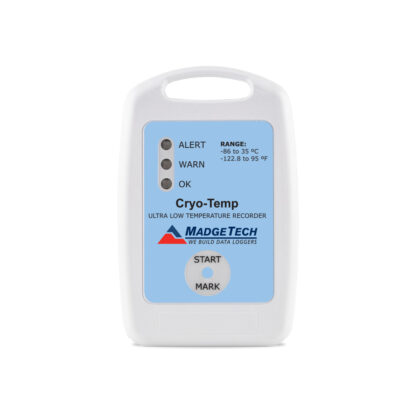

CryoTemp Ultra Low Temperature Data Logger

The CryoTemp is an ultra-low temperature data logger, recording temperatures as low as -86 °C (-122.8 °F). Includes ISO17025 accredited calibration certificate.

Key Features:

  • Compact Size
  • Splash Resistant (IP64)
  • Configurable Alarms & Warnings
Find a Distributor

$239.00

Description

The CryoTemp is an ultra-low temperature data logger that records temperatures as low as -86 °C (-122.8 °F). This device features a compact design with a handle for easy attachment and is splash resistant (IP64).

The CryoTemp provides 32,767 date and time-stamped temperature readings with an accuracy of ±1.0 °C (1.8 °F). Equipped with high/low alarm limits and high/low warning limits the user will be alerted when the temperature nears unacceptable levels preventing the loss of priceless perishables.

The CryoTemp is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory32,767 readings
Reading Rate1 reading every 5 seconds up to 1 reading every 24 hours
Single/Multi-UseMulti-use
Battery Life2 years typical at 25 °C, 1 min. reading intervals
1 year typical at -80 °C, 1 min. reading intervals
MaterialABS plastic
Dimensions3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm)
IP RatingIP64
Operating Environment-86 °C to +35 °C (-122.8 °F to +95 °F), 0 %RH to 100 %RH

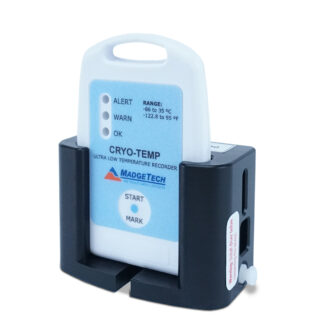

Required Interface PackageIFC300
ApprovalsCE

Temperature

Temperature SensorThermistor
Temperature Range-86 °C to +35 °C (-122.8 °F to +95 °F)
Temperature Resolution0.1 °C (0.18 °F)
Temperature Calibrated Accuracy±1.0 °C (1.8 °F)

Literature

CryoTemp Specification Sheet
CryoTemp User Guide

Accessories

Part Numbers

CryoTemp — 900038-00
