The AVS140-6 is a complete system for performing autoclave validations and assisting with 21 CFR Part 11 compliance. Includes ISO17025 accredited calibration certificates. Read More >

Key Features:

  • (5) HiTemp140 High Temperature Data Logger
  • (1) PR140 Pressure Data Logger with NPT Top
  • IFC406 Multiplexer Interface
  • MadgeTech Secure Data Logger Software

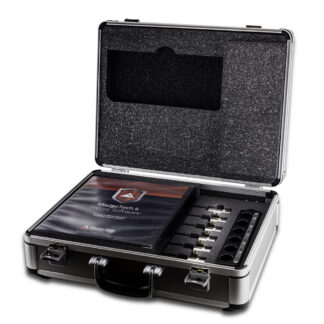

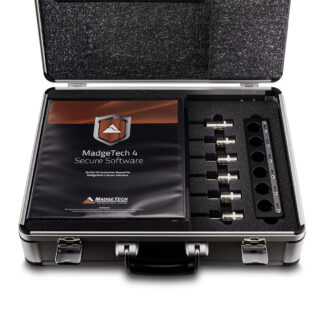

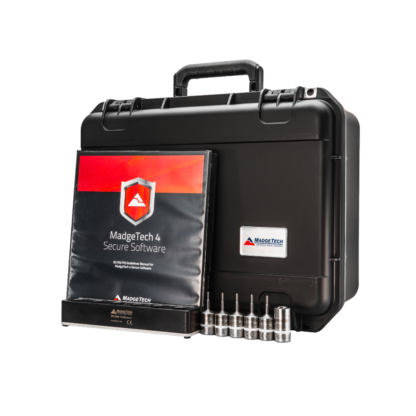

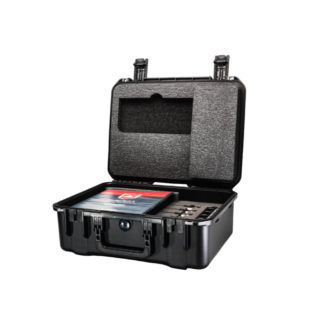

The AVS140-6 Includes:

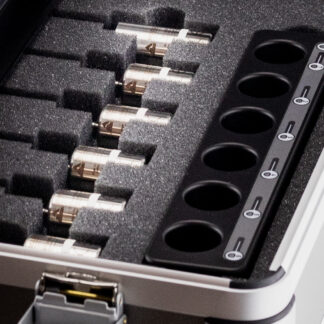

(5) HiTemp140: High Temperature Data Loggers with 1 in. probe and Calibration Certificate
(1) PR140: Pressure Data Logger with NPT Top and Calibration Certificate
(1) IFC406: Multiplexer Interface
(1) MadgeTech Secure Data Logger Software: Complete with IQ/OQ/PQ Validation Protocols and Workbook

The HiTemp140 is a high precision, temperature data logger can withstand temperatures up to 140 °C (284 °F) with an accuracy of ±0.1 °C (0.18 °F). To assist with validation, the PR140 pressure data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range from 20 °C to +140 °C (68 °F to 284 °F). Both the HiTemp140 and PR140 are comprised of stainless steel and are completely submersible.

The MadgeTech 4 Secure Software aids customers in compliance with 21 CFR Part 11 requirements, ensuring standards in which electronic files are considered equivalent to paper records, saving time and effort. MadgeTech 4 Secure Software contains criteria such as electronic signatures, access codes, secure data files, and an audit trail to meet requirements while providing data integrity.

Contact us to customize this product


AVS140-6 Product User Guide

HiTemp140 Specification Sheet

HiTemp140 Product User Guide

PR140 Specification Sheet

PR140 Product User Guide

IFC406 Quick Installation Guide

Support Videos

AVS140 | Autoclave Validation


Part Numbers

AVS140-6 — 900014-00
