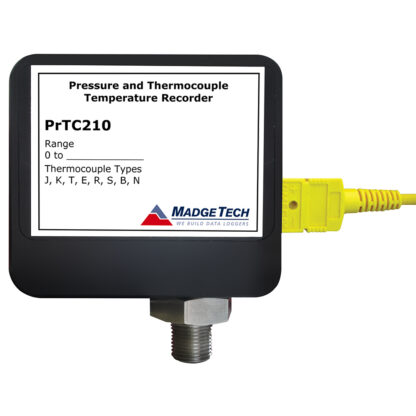

The PRTC210 is a compact, pressure and temperature data logger with thermocouple connection and NPT fitting. Includes standard calibration certificate. Read More >

Key Features:

  • Compact Size
  • ⅛ Inch NPT Fitting
  • Accepts a Variety of Thermocouples



The PRTC210 is a compact, pressure and temperature data logger with a thermocouple connection. The device is available from 30 to 5000 PSI and features a ⅛ in. NPT fitting for quick connection.

The PRTC210 measures and records temperatures from -20 °C to +80 °C (-4 °F to +176 °F) and accepts a wide variety of thermocouples. It also features a 2-year battery life with the option to program a delayed start time up to 6 months in advance.

The PRTC210 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Thermocouple probes sold separately.


Memory10,922 readings per channel
Reading Rate 1 reading every 2 seconds to 1 reading every 12 hours
Baud Rate 57,600
Cold Junction Compensation Automatic
LED Indicators Red
Dimensions2.2 in x 2.5 in x 0.9 in (55 mm x 63 mm x 22 mm)
Operating Environment -20 °C to +80 °C (-4 °F to + 176 °F), 0 %RH to 95 %RH non-condensing


Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B, N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent


Pressure Sensor Internal semiconductor
Pressure Range 0 to 30, 100, 300, or 500 PSIA/G; 0 to 1000 or 5000 PSIA
Pressure Resolution See Specifications Sheet
Pressure Calibrated Accuracy 2 %FSR, 0.25 % at 25 °C (77 °F)


PRTC210 Data Sheet

PRTC210 Product User Guide


Part Numbers

PRTC210-1000-PSIA — 901078-00
PRTC210-100-PSIA — 901082-00
PRTC210-100-PSIG — 901086-00
PRTC210-300-PSIA — 901090-00
PRTC210-300-PSIG — 901094-00
PRTC210-30-PSIA — 901098-00
PRTC210-30-PSIG — 901102-00
PRTC210-5000-PSIA — 901106-00
PRTC210-500-PSIA — 901110-00
PRTC210-500-PSIG — 901114-00
