PRHTemp2000

The PRHTemp2000 is a pressure, humidity and temperature data logger with LCD for real-time monitoring. Includes ISO17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • On-Screen Statistics
  • Memory Capacity of 262,000+ Readings

$619.00

Description

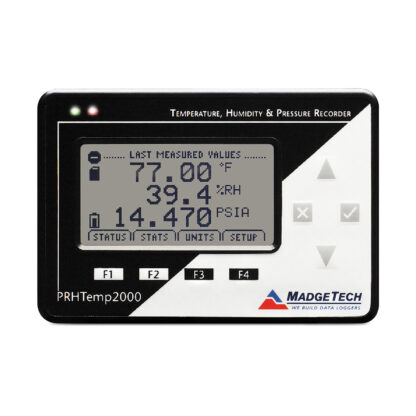

The PRHTemp2000 is a pressure, humidity and temperature data logger with LCD and wall mounted universal power adapter.

The 8-button keypad and LCD provide convenient access to current statistics (min, max, average), recording status, display options and calibration information. The PRHTemp2000 can be programmed to start up to 6 months in advanced with a storage capacity of 87,381 time and date stamped readings.

The PRHTemp2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory87,381 readings (all channels enabled)
Reading Rate1 reading every 2 seconds up to 1 reading every 24 hours
Baud Rate115,200
Battery Life1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available.
MaterialBlack anodized aluminum
Dimensions4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm)
Operating Environment-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageIFC200
ApprovalsCE

Temperature

Temperature SensorInternal semiconductor
Temperature Range-20 °C to +60 °C (-4 °F to +140 °F)
Temperature Resolution0.1 °C (0.18 °F)
Temperature Calibrated Accuracy±0.5 °C (0 to +50 °C)

Humidity

Humidity SensorInternal semiconductor
Humidity Range0 %RH to 95 %RH
Humidity Resolution0.1 %RH
Humidity Calibrated Accuracy±3 %RH (+10 °C to +40 °C, 10 %RH to 80 %RH)
(±2 %RH typical @ 25 °C)

Pressure

Pressure SensorSemiconductor (strain gauge)
Pressure Range0 PSIA to 30 PSIA
Pressure Resolution0.002 PSI
Pressure Calibrated Accuracy1 %FSR; 0.25 % at 25 °C (77 °F)

Literature

PRHTemp2000 Specification Sheet

PRHTemp2000 Product User Guide

Accessories

Part Numbers

PRHTemp2000 — 901054-00
