Element HT

Element HT Humidity and Temperature Data Logger
Element HT Humidity and Temperature Data Logger

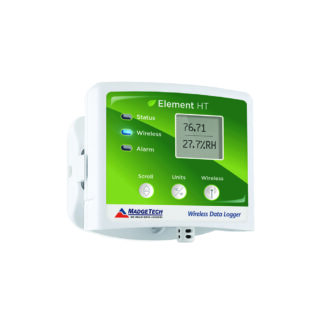

Element HT Humidity and Temperature Data Logger Mounted

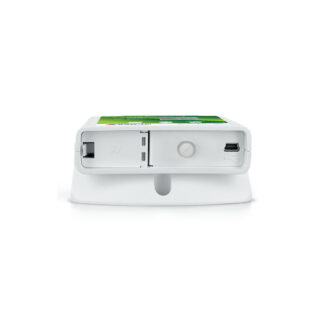

Element HT Humidity and Temperature Data Logger Bottom

The Element HT is a wireless temperature and humidity data logger for agricultural applications. Includes ISO/IEC 17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Alerts

$229.00

Description

The Element HT is a wireless data logger that measures and records humidity and temperature for agricultural applications. It’s the perfect solution for creating a real-time environmental profile in order to maintain proper grow conditions.

This device features an LCD screen which provides instant access to current readings, as well as minimum, maximum, and average statistics. Equipped with user-programmable alarms, the Element HT will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Element HT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The Element HT is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.

Note: RFC wireless interface required.
Please see data sheet for a list of countries approved for use, purchase and distribution.

General

Memory16,128 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 250,000
LED Indicators Green, Blue & Red
Battery Life 3 years typical at a 1 minute reading rate
MaterialABS plastic
Dimensions 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating IP22
Operating Environment -20 °C to +60 °C (-4 °F to +140 °F) 0 %RH to 95 %RH non-condensing
Required Interface Package RFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature Sensor Resistance Temperature Detector (RTD)
Internal Channel Temperature Range -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy ±0.5 °C (5 °C to 55 °C)

Humidity

Humidity Sensor Relative Humidity Sensor
Humidity Range 0 %RH to 95 %RH
Humidity Resolution 0.1 %RH
Humidity Calibrated Accuracy ±3.0 %RH
25 %RH to 75 %RH
+20 °C to +40 °C
Hysteresis Error 1 % typical, 3 % Maximum

Wireless

RF Carrier Frequency 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
RF Baud Rate 250,000
Output Power +0 dBm typical
Receiver Sensitivity -95 dBm typical
Typical Outdoors Line of Sight Up to 2,000 ft
Typical Indoors Line of Sight Up to 500 ft

Literature

Element HT Specification Sheet

Element HT Product User Guide

Support Videos

Element HT | Product Overview

Element HT | Live Overview

Element HT | Cannabis Cultivation

Accessories

Part Numbers

Element HT — 901423-A7
