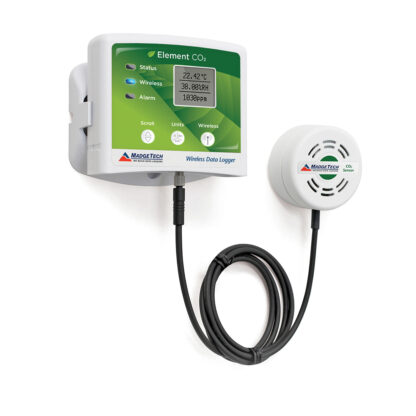

Element CO2 Carbon Dioxide, Humidity, Temperature Data Logger

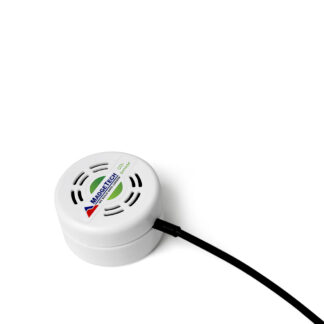

ElementCO2 Carbon Dioxide Sensor

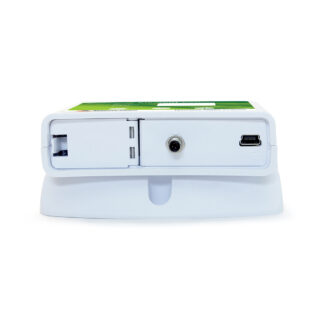

Element CO2 Data Logger Bottom
Element CO2 Carbon Dioxide, Humidity, Temperature Data Logger
ElementCO2 Carbon Dioxide Sensor
Element CO2 Data Logger Bottom

The Element CO2 is a wireless CO2, humidity and temperature data logger for agricultural applications. Includes ISO/IEC 17025 accredited calibration certificate. Read More >

Key Features:

  • Digital Display
  • Continuous Monitoring
  • Configurable Alarms & Alerts
Find a Distributor

$769.00

MadgeTech recommends annual calibration.

Description

The Element CO2 is a wireless data logger that measures and records carbon dioxide, humidity and temperature levels for agricultural applications. It’s the all-in-one solution for acquiring a complete environmental profile.

The Element CO2 comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement around grow rooms or greenhouses to ensure optimum levels. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the Element CO2 will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Element CO2 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The Element CO2 is also MadgeTech Cloud Services ready, providing users the ability to monitor real-time data remotely on any internet enabled device, from anywhere in the world.

Note: RFC wireless interface required.

General

Memory10,752 readings (all channels enabled)
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate250,000
LED IndicatorsGreen, Blue & Red
Battery Life16 months typical at a 10 minute reading rate
MaterialABS plastic
DimensionsData logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in)
IP RatingIP22
Operating Environment0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH non-condensing, 13.77 PSIA to 100 PSIA
Required Interface PackageRFC1000
ApprovalsUS (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature SensorSilicon
Internal Channel Temperature Range0 °C to +55 °C (+32 °F to +131 °F)
Internal Channel Temperature Resolution0.08 °C (0.144 °F)
Internal Channel Temperature Calibrated Accuracy±1.0 °C

Humidity

Humidity SensorSilicon
Humidity Range0 %RH to 95 %RH
Humidity Resolution0.08 %RH
Humidity Calibrated Accuracy±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise

Carbon Dioxide

Carbon Dioxide Range0 ppm to 200,000 ppm
Carbon Dioxide Resolution10 ppm
Carbon Dioxide Accuracy70 ppm ± 5% of the reading

Wireless

RF Baud Rate250,000
Output Power+0 dBm typical
Receiver Sensitivity-95 dBm typical
Typical outdoors Line of sightUp to 2000 ft
Typical Indoors line of sightUp to 500 ft

Literature

Element CO2 Product User Guide
DOC-1335036-00
Element CO2 Specification Sheet
DOC 1335009-00

Support Videos

Element CO2 | Product Overview

Element CO2 | Cannabis Cultivation

Accessories

Part Numbers

Element CO2 — 901391-A7
