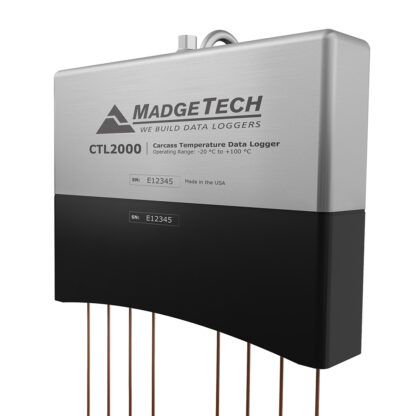

CTL2000

The CTL2000 is a carcass temperature data logger with 8 thermocouple channels. Includes standard calibration certificate. Read More >

Key Features:

  • Durable Enclosure
  • Splash Resistant (IP64)
  • Measures Temperatures from -20 °C to 100 °C

$2,000.00

Description

The CTL2000 carcass temperature data logger is a heavy-duty solution for temperature monitoring during carcass pasteurization cycles. Equipped with 8 thermocouple ports, the CTL2000 monitors and records various sections of the carcass, providing a continuous and accurate temperature profile to verify and validate that harmful microorganisms are destroyed.

This device is capable of withstanding temperatures from -20 °C to 100 °C (-4 °F to +212 °F) and can store up to 129,024 readings. Its durable enclosure is designed to survive the elements of the slaughter environment and is guarded against debris infiltration and harsh wash down cycles.

The CTL2000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory129,024 readings
Reading Rate4 readings every second up to 1 reading every 24 hours
Cold Junction CompensationAutomatic, based on internal channel
Channels8 internal channels & 8 remote channels
LED IndicatorsBlinks every 2 seconds to indicate unit is logging
Blinks every 5 seconds to indicate unit is in delay start mode
Battery Life4 years typical at a 5 minute reading rate
7.2V lithium battery included; user replaceable
MaterialEnclosure & Hook: 316 Stainless Steel
Gasket Seal: EPDM Rubber (NSF-51)
Dimensions8.1 in x 6.5 in x 3.1 in (205 mm x 165 mm x 80 mm)
IP RatingIP67
Operating EnvironmentContinuous use: -20 °C to +100 °C (-4 °F to +212 °F) 0 %RH to 100 %RH
Required Interface PackageIFC110 or IFC200
Weight3.1000 LBS

Temperature

Internal Channel Temperature SensorSemiconductor
Internal Channel Temperature Range-20 °C to +100 °C (-4 °F to +212 °F)
Internal Channel Temperature Resolution0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy±0.5 °C (+10 °C to +80 °C)
Remote Channel Temperature SensorCompatible with Type K Thermocouple Only
Remote Channel Temperature Range-270 °C to +1370 °C (-454 °F to +2498 °F)
Remote Channel Temperature Resolution0.1 °C (0.18 °F)
Remote Channel Temperature Calibrated Accuracy±0.5 °C (±0.9 °F)

Literature

CTL2000 Data Sheet
CTL2000 Product User Guide

Accessories

Part Numbers

CTL2000 — 900051-00
